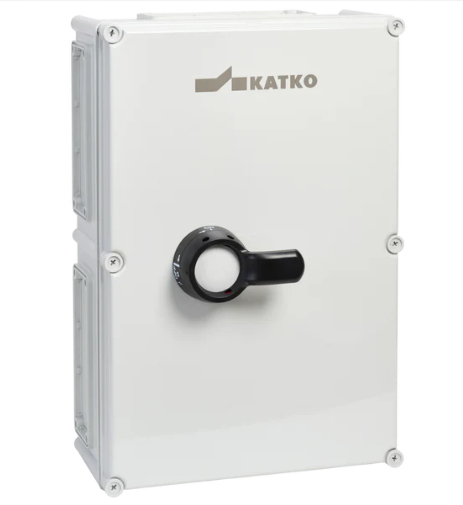

Safety Switch Isolator AC-21:250A AC-23:250A MF03 enclosed PC 3-pole

• IP65; Enclosure types MF11, MF03, MF04
• Self-extinguishing material
• Wide operating temperature range
• Padlockable with 3 locks
• Door interlock with defeat mechanism
• Excellent insulating properties
• Good UV resistance
• Good resistance against many chemicals
• Tested according to IEC 60947-3

• AC-21 (400 V, 415 V, 690 V): Ie = 250A
• AC-22 (400 V, 415 V, 690 V): Ie = 250 A
• AC-23 (400 V, 415 V): Ie = 250A; P = 132 kW
• AC-23 (690 V): Ie = 250 A; P = 250 kW
